Description

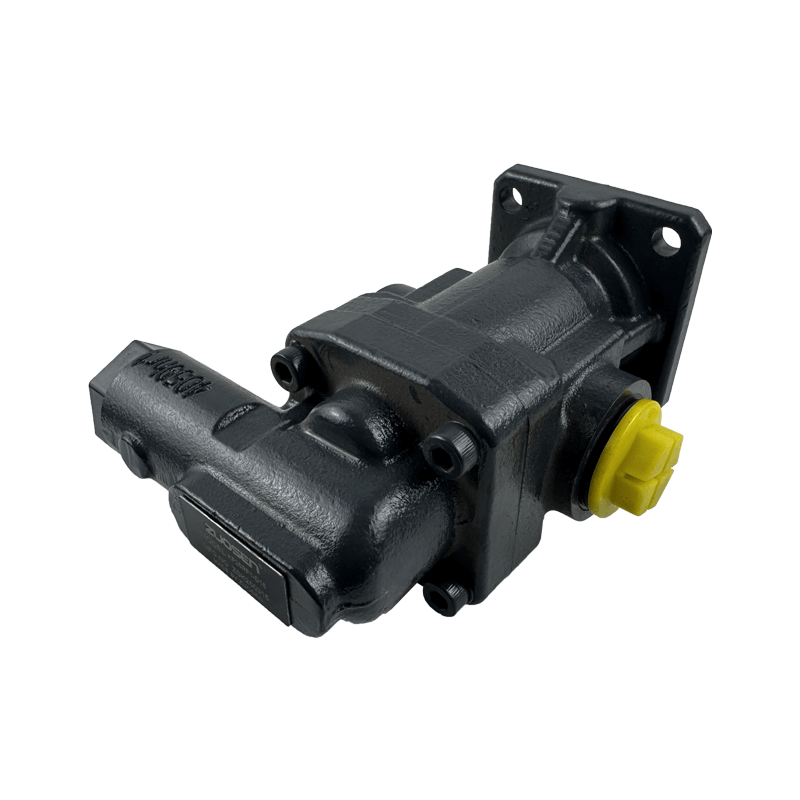

kracht gear pump Kracht KF25RF1-D15 Hydraulic Gear Pump – Hydraulic Pump ZuosenKF25 Series Kracht Gear Pump KF25RF1 D15 Hydraulic Gear Pump Specification size geom. displacement cm3 r Working pressure bar Maximum pressure bar Speed range Permissible load (n = 1500 1 min) N Sound level dB (A) Weight kg nmin nmax p =5 bar p =15 bar p =25 bar without valve with valve 2. 5 2. 55 25 40 200 3600 700 65 66 67 4. 2 5 4 4. 03 5 5. 05 6 6. 38 8 8. 05 10 10. 11 12 12. 58 16 16. 09 4. 8 5. 6 20 20. 1 25 25. 1 32 32. 12 7. 7 9. 5 40 40. 21
KF25 Series Kracht Gear Pump KF25RF1-D15 Hydraulic Gear Pump
Specification
| size | geom. displacement cm3/r |
Working pressure bar |
Maximum pressure bar |
Speed range | Permissible load (n = 1500 1/min) N |
Sound level dB (A) | Weight kg |
||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| nmin | nmax | p =5 bar | p =15 bar | p =25 bar | without valve | with valve | |||||
| 2.5 | 2.55 | 25 | 40 | 200 | 3600 | 700 | ≤ 65 | ≤ 66 | ≤ 67 | 4.2 | 5 |
| 4 | 4.03 | ||||||||||
| 5 | 5.05 | ||||||||||
| 6 | 6.38 | ||||||||||
| 8 | 8.05 | ||||||||||
| 10 | 10.11 | ||||||||||
| 12 | 12.58 | ||||||||||
| 16 | 16.09 | 4.8 | 5.6 | ||||||||
| 20 | 20.1 | ||||||||||
| 25 | 25.1 | ||||||||||
| 32 | 32.12 | 7.7 | 9.5 | ||||||||
| 40 | 40.21 | 1500 | ≤ 67 | ≤ 68 | ≤ 68 | ||||||
| 50 | 50.2 | ||||||||||
| 63 | 63.18 | 9.4 | 11.2 | ||||||||
| 80 | 80.5 | 3000 | |||||||||
| 100 | 101.5 | ≤ 67 | ≤ 68 | ≤ 69 | 16 | 18.7 | |||||
| 112 | 113.5 | ||||||||||
| 125 | 129.4 | ≤ 65 | ≤ 65 | ≤ 65 | 22.2 | 24.9 | |||||
| 150 | 155.6 | ||||||||||
| 180 | 186.6 | 24.8 | 27.5 | ||||||||
| 200 | 206.2 | 2500 | |||||||||
| 250 | 245.1 | 2000 | 2500 | ≤ 75 | ≤ 75 | ≤ 75 | 44.2 | 47.6 | |||
| 315 | 312.9 | ||||||||||
| 400 | 399.5 | 35 | ≤ 77 | ≤ 77 | ≤ 77 | 54.7 | 58.2 | ||||
| 500 | 496.5 | ||||||||||
| 630 | 622.5 | 30 | ≤ 78 | ≤ 78 | ≤ 80 | 60.8 | 64.2 | ||||
